Complete Frame Mounted Horizontal Fuel Conditioning Module (HFCM) Assembly for 2003-2007 Ford 6.0L Power Stroke Diesel

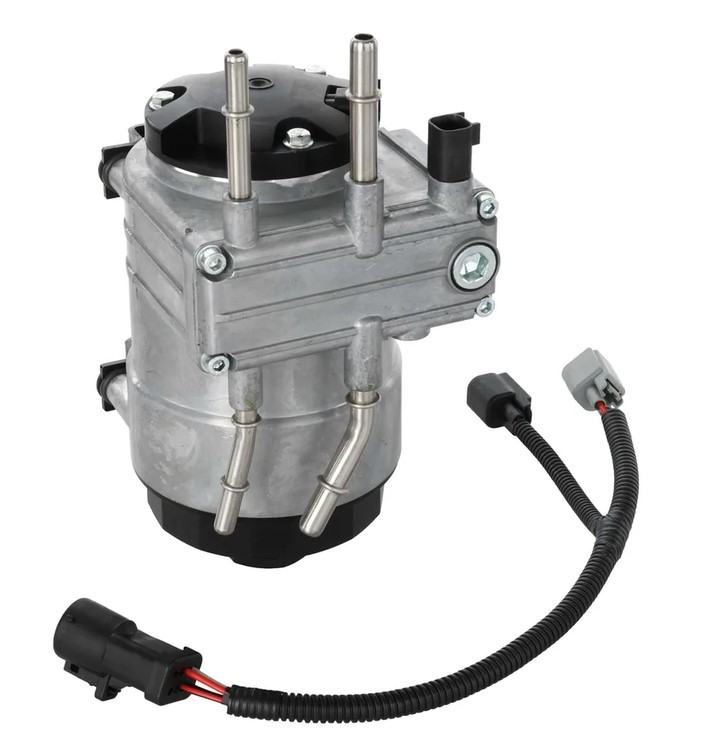

Restore proper fuel pressure and dependable fuel delivery with the Delphi HFP1002 Horizontal Fuel Conditioning Module (HFCM) Fuel Pump Assembly. This complete frame-mounted HFCM assembly is engineered as a direct OE-style replacement for the factory fuel pump and filter housing assembly used on 2003-2007 Ford Super Duty trucks and Excursion equipped with the 6.0L Power Stroke diesel engine.
Unlike pump-only replacements, the Delphi HFP1002 includes the complete HFCM housing assembly with the electric lift pump installed, making installation faster while eliminating worn housings and aging internal components. Delphi also includes an updated wiring harness adapter, allowing seamless installation on vehicles requiring the updated electrical connector.
Manufactured by Delphi—one of the world's largest original equipment fuel system suppliers—the HFP1002 is built to deliver the fuel volume and pressure required for proper injector operation while meeting or exceeding OE performance standards.
Product Features
- Complete Horizontal Fuel Conditioning Module (HFCM) Assembly
- Includes integrated electric diesel lift pump
- Complete frame-mounted fuel pump and housing assembly
- Includes updated wiring harness adapter
- Direct-fit OE replacement
- Restores proper fuel pressure and fuel delivery
- Helps eliminate hard starting and low fuel pressure concerns
- Engineered to OE specifications for fit, form, and function
- Precision-tested for reliability and long service life
- Premium Delphi OE-quality construction
- Ready to install
Common Symptoms of a Failed HFCM Assembly
A failing HFCM fuel pump assembly may cause:
- Hard starting
- Extended crank time
- Low fuel pressure
- Loss of power under load
- Hesitation during acceleration
- Engine stalling
- Fuel starvation
- Excessive injector noise
- No-start condition caused by lift pump failure
Replacing the complete HFCM assembly restores proper low-pressure fuel supply to the high-pressure injection system.
Vehicle Fitment
Ford Excursion
- 2003-2005 – 6.0L Power Stroke Diesel
Ford F-250 Super Duty
- 2003-2007 – 6.0L Power Stroke Diesel
Ford F-350 Super Duty
- 2003-2007 – 6.0L Power Stroke Diesel
Ford F-450 Super Duty
- 2003-2007 – 6.0L Power Stroke Diesel
Ford F-550 Super Duty
- 2003-2007 – 6.0L Power Stroke Diesel
Engine: 6.0L Power Stroke Turbo Diesel
What's Included
- Delphi HFP1002 Complete HFCM Fuel Pump Assembly
- Integrated electric lift pump
- Fuel conditioning module housing
- Updated wiring harness adapter
- Factory-style electrical connections
- Ready for installation
Why Choose Delphi?
Delphi Technologies has supplied original equipment fuel systems to vehicle manufacturers worldwide for decades. Every Delphi fuel pump assembly is manufactured using OE engineering standards and extensively tested for pressure output, durability, electrical performance, and long-term reliability. Choosing Delphi means installing a component engineered to provide factory-level performance and dependable service life.
Installation Notes
- Verify vehicle compatibility before ordering.
- This assembly replaces the frame-mounted Horizontal Fuel Conditioning Module (HFCM) located on the driver-side frame rail.
- Includes an updated wiring harness adapter for applications utilizing the revised electrical connector.
- It is recommended to inspect fuel lines and clean the fuel system before installation to maximize service life.
- Prime the fuel system according to Ford service procedures after installation.
