1994-2002 DODGE 5.9L CUMMINS (HEAVY-DUTY)
The BD-Power 1062003 Stage 3 Transmission Build-It Kit for your 1994-2002 Dodge 5.9L Cummins is the perfect option for those looking to rebuild their transmission. These kits feature some of the same parts used by BD-Power in their own performance transmissions and come with the components needed for the seasoned builder to complete the job. The Stage 3 kit is a more in-depth "Heavy-Duty" rebuild kit that is designed for use in many street performance and towing applications.
FEATURES:
- Stage 3 Heavy Duty Rebuild Kit
- For Street Performance, Towing & General Use

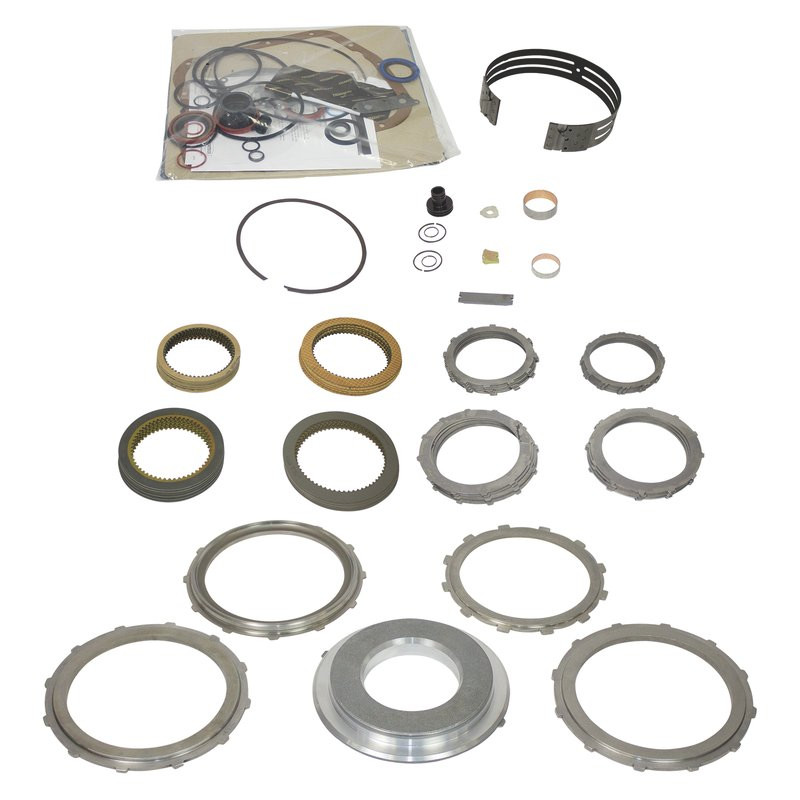

1062003 STAGE 3 COMPONENTS
(1) Band - High Temp
(1) Band Anchor - Billet
(1) Bushing - Front Clutch Drum 0.85
(1) Bushing - Pump - Bronze w/Dimples
(5) Friction - Front (Dir/Hi/Rev)
(6) Friction - O/D BW
(10) Friction - O/D Direct BW
(5) Friction - Rear (FWD)
(1) Gasket Kit - Overhaul
(1) Pressure Plate - Dir/Fwd (Frt) .145
(1) Pressure Plate - Dir/Fwd (Frt) .185
(1) Pressure Plate Forward (Rr) Beveled Machined
(1) Pressure Plate O/D Brake F&R Machined
(1) Piston - Dir. Clutch (Frt) Machined
(1) Snap Ring - Direct Clutch .074
(4) Steel - Fwd (Dir/Hi/Rev)
(6) Steel - O/D Brake
(9) Steel - O/D Dir .525
(5) Steel - Frt (Dir/Hi/Rev) Oversize
(1) Strut - Front Band
(1) Washer - Int. Shaft Thrust .052
Note: Transmission Build-It Kits are not covered by any warranty. Components are guaranteed to be free of defects upon receiving the products. However, the build and function of the transmission is the sole responsibility of the builder.
